Universal Visual Editor

dotCMS's interface for editing pages, the Universal Visual Editor (UVE), is a comprehensive, multi-paradigm solution to page editing. From the UVE, you can preview a page; add, edit, or arrange content; adjust layouts; set rules; configure experiments; run workflows; and more.

By providing a unified experience across both traditional and headless contexts — whether editing local or remote pages and web applications — the UVE is one of clearest expressions of dotCMS's hybrid character.

Read more about configuring the UVE to work headlessly in Universal Visual Editor Configuration for Headless Pages, which includes the full specification of the Apps configuration, how to run multiple front ends for development purposes, and general troubleshooting tips.

Across the top is the UVE's main toolbar, visible while the page content editor is selected in the navigaton bar. It contains the following functions and selectors.

Mode #

The mode selector allows you to switch between Draft, Preview, and Published modes.

In Draft mode, the full editing powers of the UVE are available, including the Content Palette. Visible only in draft mode is a glyph to the left of the mode selector that will display or hide the content palette.

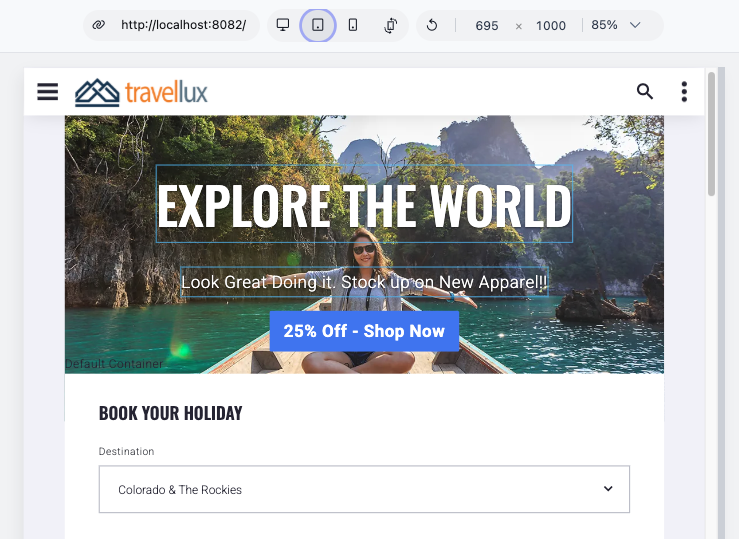

Preview mode gives you the ability to view the draft version of the page as it would appear across several viewing modes — desktop, tablet, and mobile (in either horizontal or vertical orientation).
Published mode is similar to the Preview mode display, but displays the published, rather than draft version — i.e., the version currently visible to site visitors — and also surfaces the Future Time Machine date picker, which allows you to view scheduled versions of the page.
- See the Future Time Machine documentation page for more information.

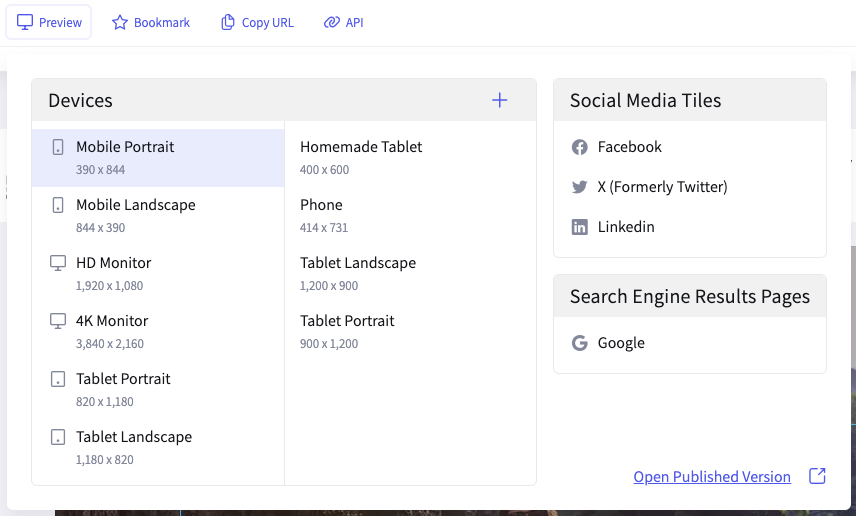

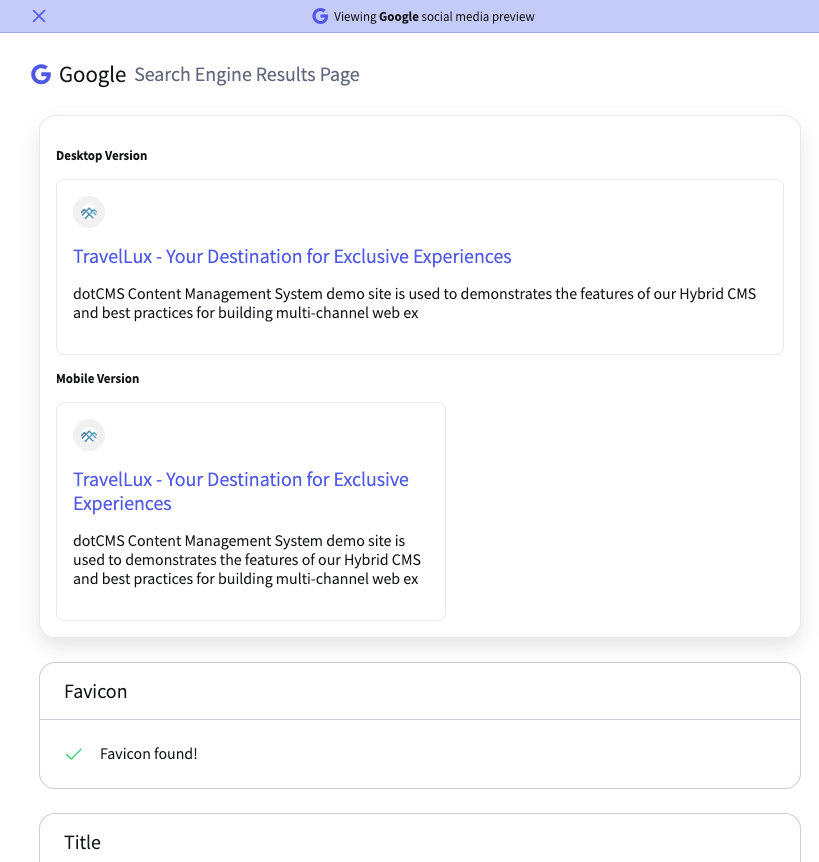

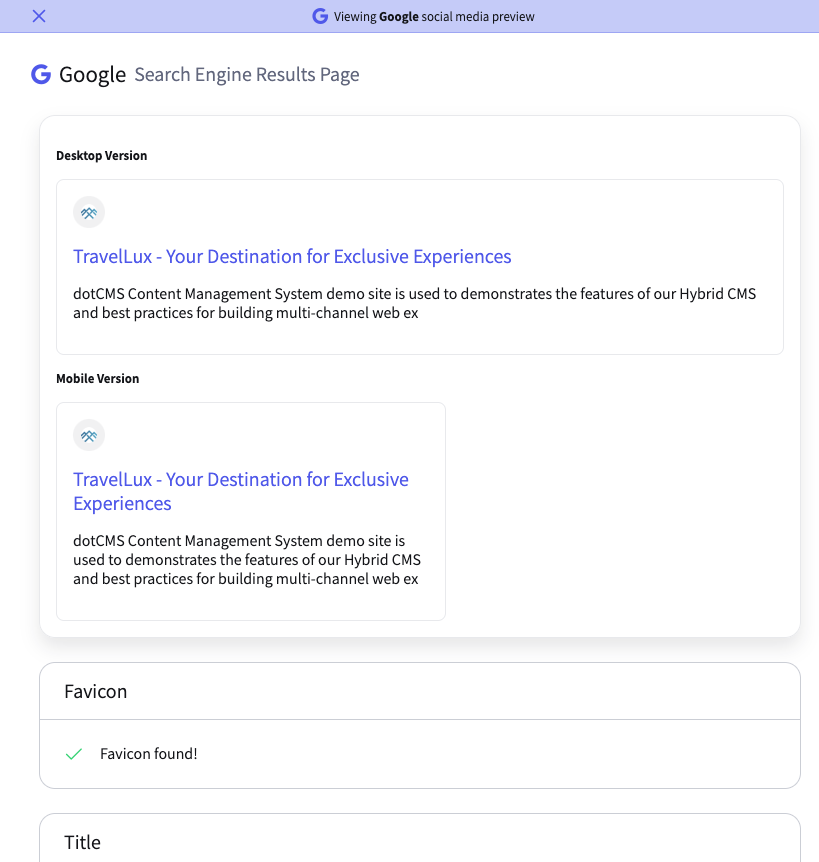

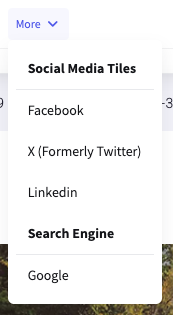

Preview and Published modes also include an additional dropdown, labeled More, with social media tiles and search engine results pages. These entries provide previews of, and feedback on, your page's behavior in social media linking. This may include checks for best-practice HTML tags, general guidelines, and links for further reading.

Bookmark #

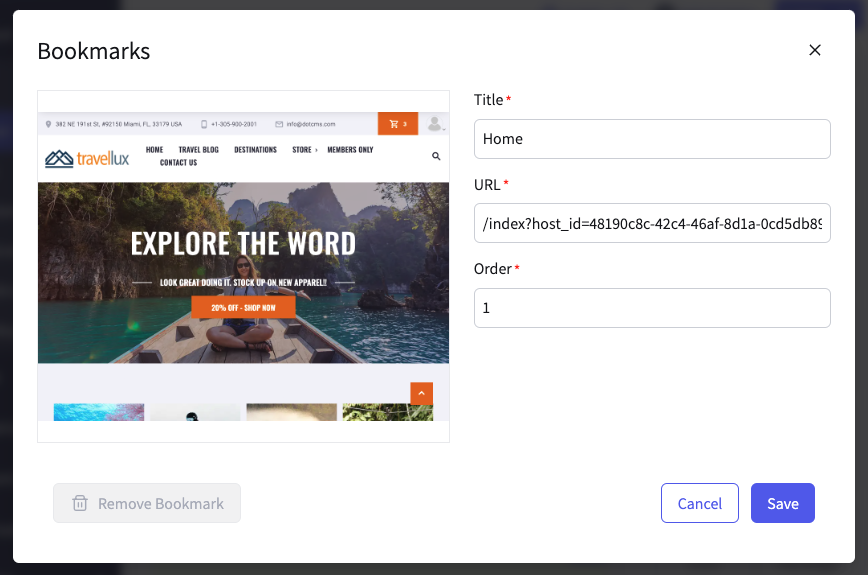

The Bookmark button allows you to bookmark the current page. For more information on bookmarking in dotCMS, see the documentation of the Pages Tool, where they are used.

Copy URL #

The Copy Url button lets you select, via popover, whether to copy the clean version of the URL, or the version with all system parameters.

API #

The API link opens a new tab containing the full JSON object of the current page's Page API response, allowing quick reference to the page's underlying data.

Language Selector #

You can use the language selector to easily switch between different versions of the same page across different defined languages, where available. For more information, see Configuring Languages, or the Multilingual Content section generally.

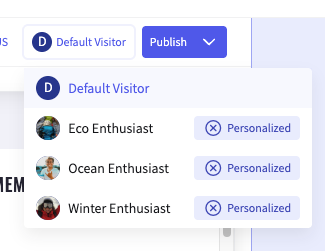

Persona Selector #

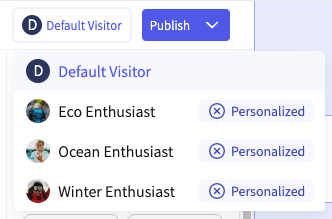

If you're using personalization, this selector allows you to switch between versions of the current page tailored to different personas.

Selecting a visitor Persona sets the Persona on the page, triggers rules, and re-renders the page to display the appropriate personalized content (if any exists).

Visibility or accessibility may vary from persona to persona, based on back-end user permissions.

Workflow Execution #

The Workflow button allows the execution of applicable Workflows on the current page — such as saving, publishing, or performing more elaborate custom schemes.

The actions displayed will be determined by the Workflow assigned to the Page Content Type, the current Workflow step the content is in, the configuration of the Workflow actions in that step, and your permissions.

Within a given Workflow step, the button's dropdown will display all applicable actions in the same order order in which they appear in the Workflow; the first applicable action is the button's default behavior and label. As such, reordering the actions in the Workflow step can change the default label of the button.

Content Editor #

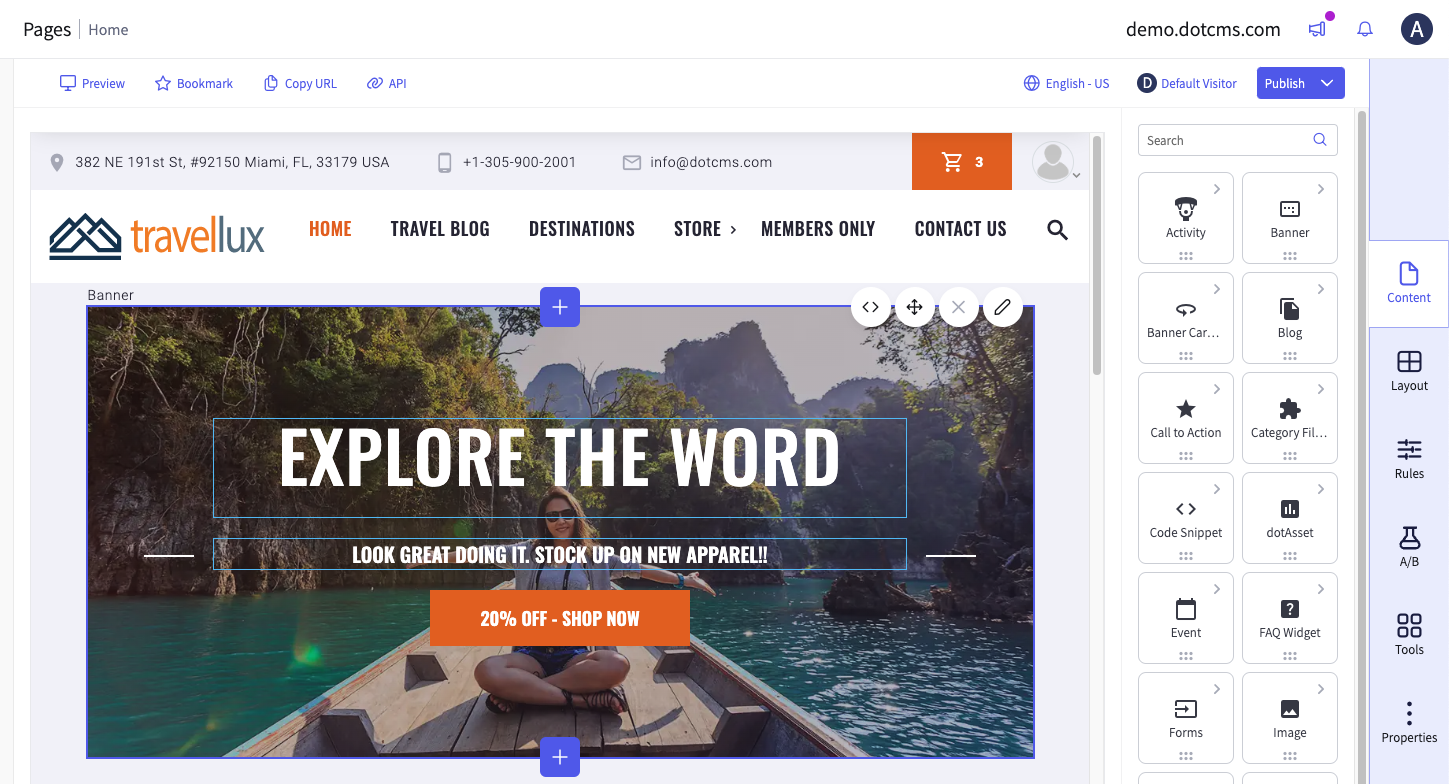

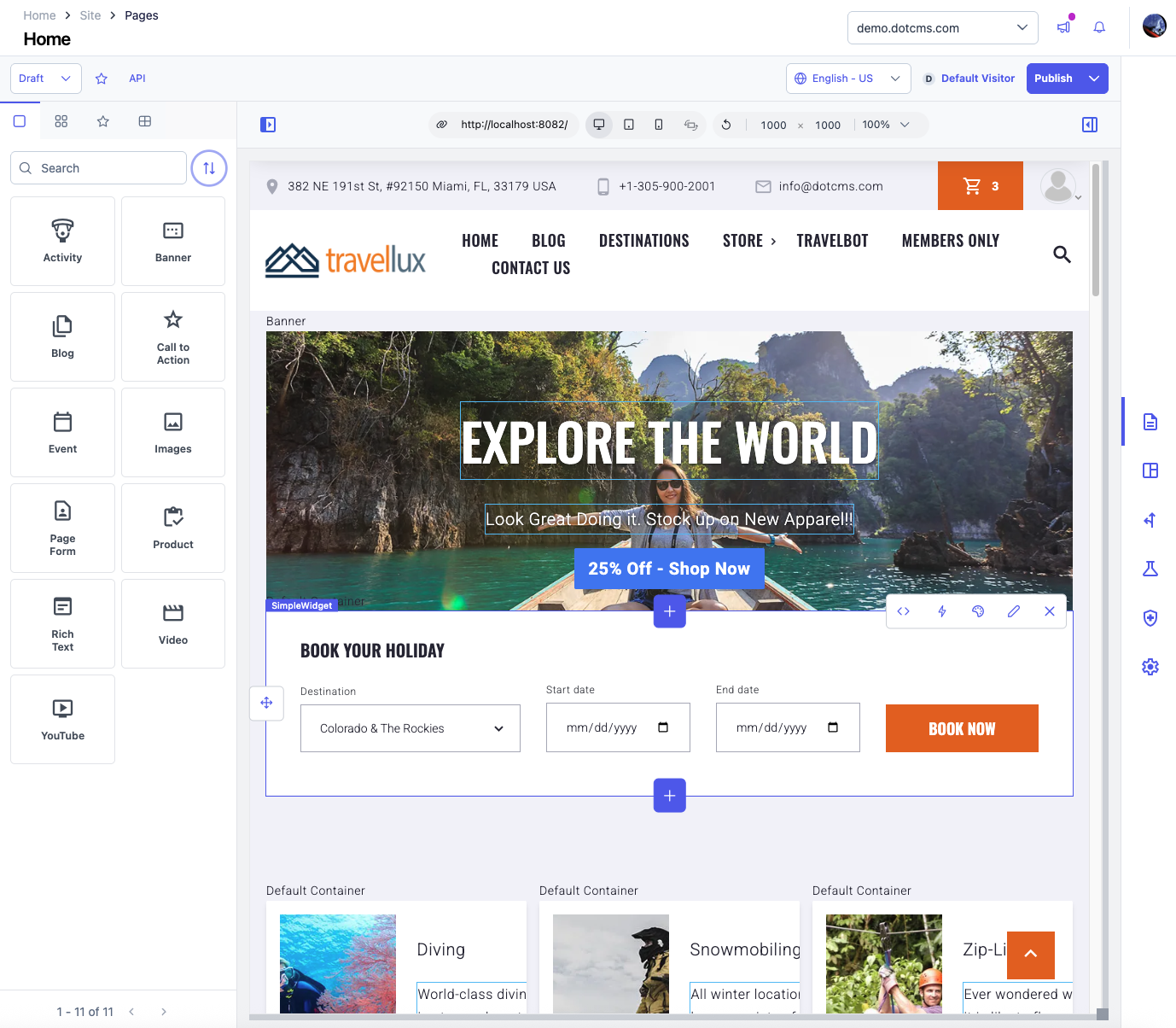

The majority of screen real estate in the Universal Visual Editor is the editor window itself, chiefly consisting of a pane displaying an editable preview, including the page's various containers and the content, widgets, or forms they hold.

The UVE is fully compatible with Vanity URLs, and will redirect to load a different page if a Vanity URL is detected for the selected page's URI.

On the pane's right side lies the Content Palette, which allows the quick population of containers.

Editor Window #

Within the editor, each container displays a + button through which you can populate the container with either content, a widget, or a form.

Each container similarly has several buttons on the upper right:

Button	Action
	Shows a list of VTL files relevant to the container's contents — including widget code, the VTL responsible for rendering in the case of a File-Based Container, and any others included through the `#dotParse` directive. This button will not display if there is no relevant VTL file.
	Drag this button to reorder content within the container.
	Remove the contentlet from the container. (This does not delete the contentlet from dotCMS.)

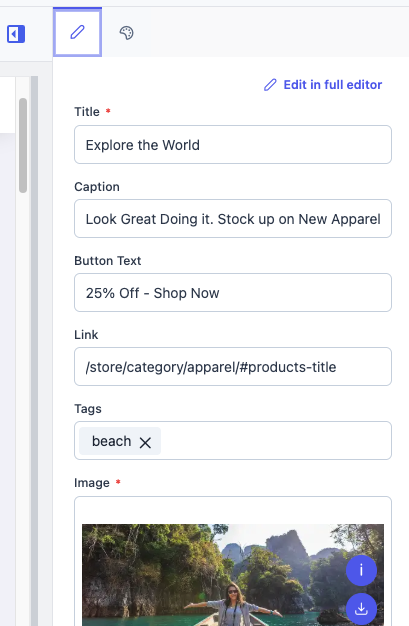

	Click to directly edit the contentlet or widget displayed in the Container.

The Content Palette #

Clicking on any displayed Content Type in the Content Palette provides a list of contentlets of that type.

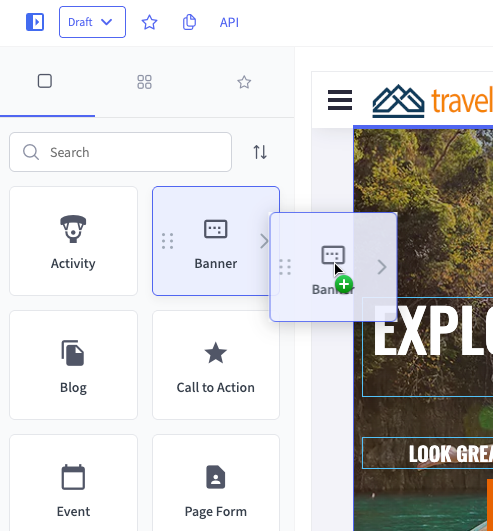

Drag and drop any item from this list to place it into a container. Alternately, you may drag and drop the Content Types themselves to create a new contentlet of that type and immediately place it in the container.

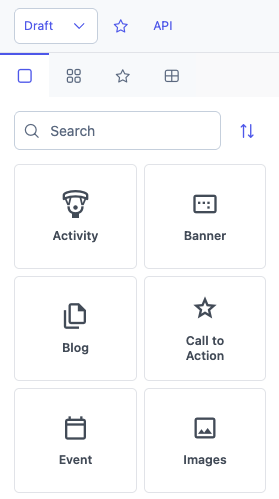

The Content Palette allows text searches for content types, and filtering between content types, widgets, and favorites via the top-row tabs.

Content Palette Displayed Types #

The Content Palette automatically shows all Content Types accepted by the Containers in the Page, as well as up to 100 widget types.

You may optionally exclude Content Types from the Content Palette, even if a Container would otherwise accept them, by assigning a comma-separated list of Content Type variables to the following environment variable (shown below in its default state):

DOT_CONTENT_PALETTE_HIDDEN_CONTENT_TYPES: 'Host,Vanityurl,Languagevariable,persona,forms'

Appearing on the far right-hand side of the UVE is perhaps its most fundamental menu, as everything discussed above falls within the scope of its first item — Content.

At the far right of the UVE display, a sequence of tabs allow navigation between different page-specific editable parameters:

Action	Description
Content	Allows you to add and modify the content displayed on the Page.
Layout	Allows you to modify the layout of the Containers in the Page, to create a custom layout as though it were a Template.
Rules	Displays and allows you to add and edit Rules that apply to this Page only.
A/B	Views the page's Experiments.
Page Tools	Provides a panel of links to tools that assist with best-practices compliance.
Properties	Opens the page properties via the contentlet editor.

Page Tools #

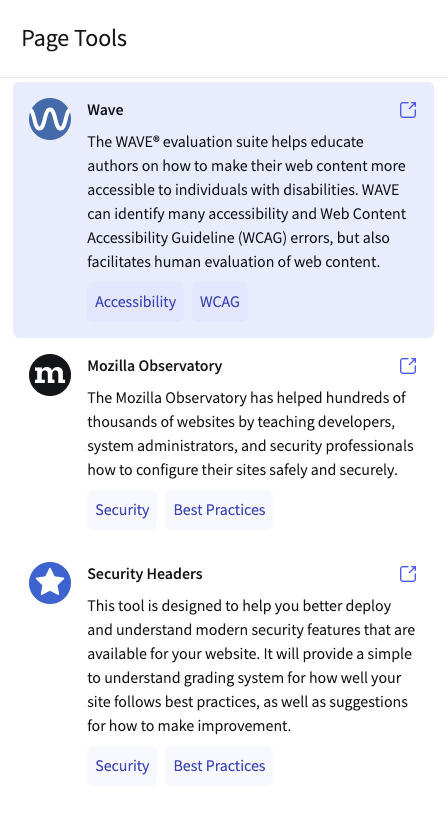

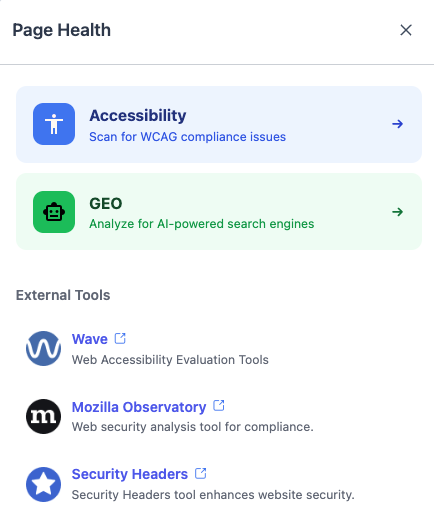

The Page Tools pane opens a popup, seen below, that includes convenient links to services that can help evaluate a page for accessibility, security, etc.

By clicking any of these entries, your page URL — if published and live — will be automatically fed into the respective tool. Each of the entry listings is a uniform link; the "chips" at the bottom of each convey the categories addressed by each tool.

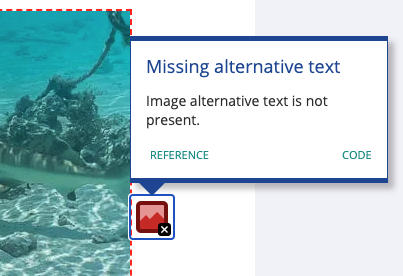

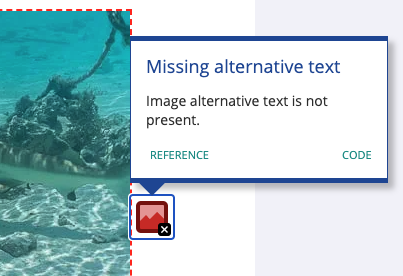

WAVE®'s tools help to identify accessibility issues — whether structural, such as header usage; graphical, such as color contrast scores; or notational, such as the presence or absence of alt text on images.
- To learn more about this tool, visit its home page, or its help page.

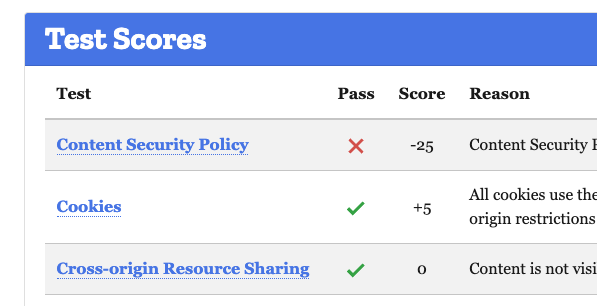

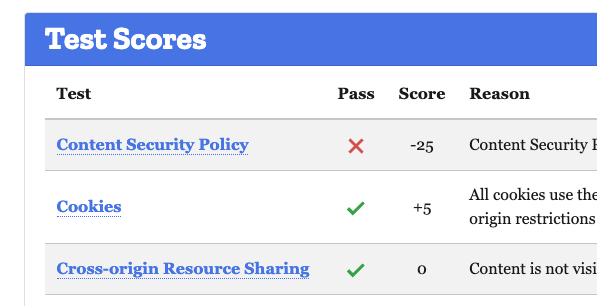

Mozilla Observatory scans for cookie usage, security policy, and more, across several web protocols. It also includes third-party scans for, e.g., other high-profile vulnerabilities.
- For more information, see their FAQ.

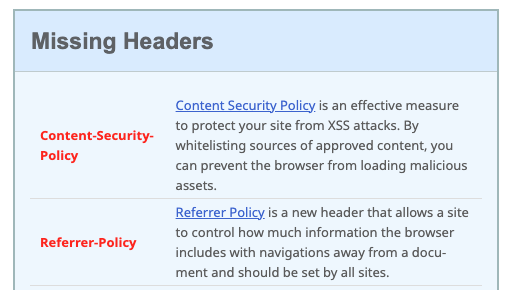

Security Headers provides feedback on absent or improperly configured security headers.
- For more information, see their FAQ.
