Developing an OSGi Plugin

You can create your own OSGi plugin in dotCMS in your favorite IDE with java support. This document provides links to examples, and detailed instructions to enable debugging of your plugin in dotCMS, create your plugin, and install and uninstall your plugin.

Note If you're new to developing plugins in dotCMS, we strongly recommend that you begin with the OSGi plugin examples provided with the dotCMS distribution before adding or making changes to plugin code.

Example Plugins #

We provide several examples to help create new dynamic plugins. If you are new to plugin development in dotCMS, we recommend that you begin by creating one of the example plugins, without changes, to ensure your development environment is configured properly before adding your own code or making changes to the example code. Once you've successfully built and deployed one of the example plugins, deploying your own custom plugin is very straight forward.

Source code for examples can be found in our plugin-examples repository on GitHub.

The following examples are provided:

Plugins #

Plugin	What It Does
`com.dotcms.3rd.party`	Package and use a third-party Java library inside a dotCMS OSGi bundle
`com.dotcms.actionlet`	Add a custom Workflow Actionlet
`com.dotcms.aop`	Expose custom Jersey REST endpoints with AOP interceptors
`com.dotcms.app.example`	Create a dotCMS App with secure configuration and change listeners
`com.dotcms.content.validation`	Validate content at workflow time using a custom Actionlet
`com.dotcms.contenttype`	Create and remove a custom Content Type programmatically
`com.dotcms.dynamic.skeleton`	Minimal OSGi bundle skeleton with the standard activator lifecycle
`com.dotcms.fixasset`	Register a custom CMS Maintenance Fix Task
`com.dotcms.hooks`	Attach pre/post Contentlet API hooks
`com.dotcms.hooks.pubsub`	Publish cluster-aware Pub/Sub events from a content publish hook
`com.dotcms.hooks.validations`	Pre-checkin validation hooks using a pluggable strategy pattern
`com.dotcms.job`	Schedule recurring jobs from an OSGi bundle
`com.dotcms.portlet`	Add custom admin portlets to the dotCMS back-end
`com.dotcms.pushpublish.listener`	Listen to Push Publish lifecycle events
`com.dotcms.rest`	Expose custom Jersey REST endpoints
`com.dotcms.ruleengine.velocityscriptingactionlet`	Rules Engine actionlet that executes Velocity script
`com.dotcms.ruleengine.visitoripconditionlet`	Rules Engine conditionlet that matches visitor IP/CIDR
`com.dotcms.servlet`	Servlet/filter-style request handling via WebInterceptors
`com.dotcms.simpleService`	Publish a reusable OSGi service for other bundles to consume
`com.dotcms.staticpublish.listener`	Hook into Static Push Publish events
`com.dotcms.tuckey`	Register Tuckey URL rewrite, redirect, and forward rules
`com.dotcms.viewtool`	Create and register a custom Velocity ViewTool
`com.dotcms.webinterceptor`	Intercept and wrap HTTP requests and responses

Running dotCMS in Debug Mode #

Before deploying an OSGi plugin, it is important to run your dotCMS development environment in debug mode so that you can add breakpoints to your code in Eclipse to step through your custom plugin code. To start dotCMS in debug mode, run the following startup command from the root of the dotCMS installation folder to add the debug parameter:

Linux/OS-X/Unix:
```
./bin/startup.sh debug
```
Windows:
```
bin\startup.bat debug
```

Note:

Running in debug mode consumes significant server resources.
- Make sure that once you have finished testing your OSGi plugin, you stop your dotCMS instance and restart your dotCMS instance WITHOUT the debug command.
If you are running dotCMS in an application server other than Tomcat, you will need to change the above command to reference the appropriate log file for your application server.
You may also wish to "tail" the log file so you can view the debug messages as they are generated.
- In Linux, OS-X and Unix, this can be accomplished by running the following command: tail -f dotserver/tomcat-8.0.18/logs/catalina.out
- In Windows, you will need to use a third-party application (such as BareTail) to tail the log file.

Set up your Plugin Development Environment in Eclipse #

To create a new plugin, you must create a new project in Eclipse with the same folder organization as provided in one of our OSGi plugin examples found in the /docs/examples/osgi/ folder.

Once you have created your code, export the project as a JAR file and upload or deploy it from the Dynamic Plugins tool accessible from the System tools menu.

For more information on each of these steps, please see the detailed instructions below.

1. Create the Eclipse project for your OSGi plugin #

Use gradlew to create your eclipse project:

./gradlew eclipse

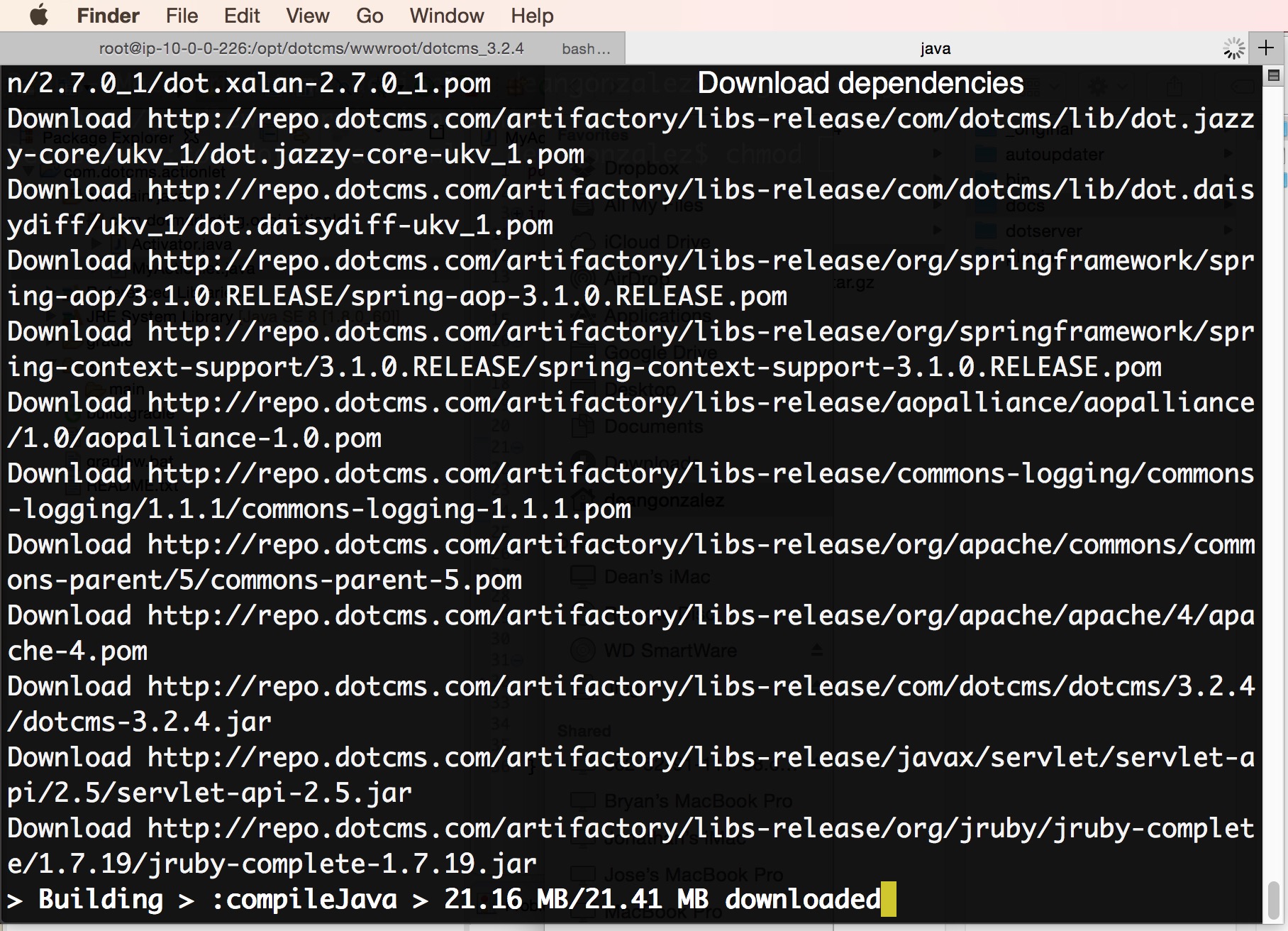

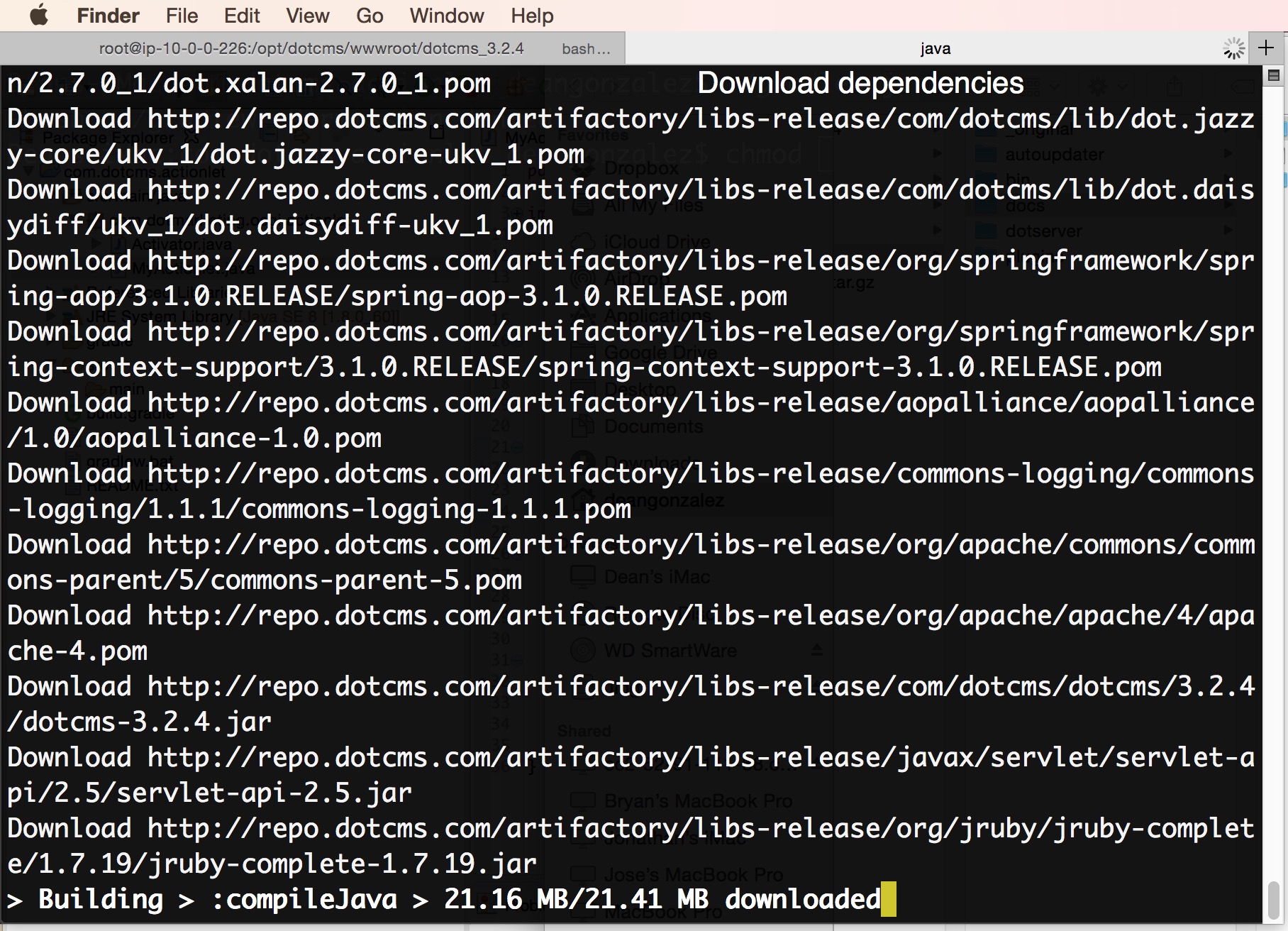

This command creates your eclipse project and downloads all required dependencies (i.e. jar files).

2. Import the project #

Import the project created by the gradlew command into Eclipse. This ensures that the jar files are already configured and do not need to be added manually.

3. Edit the Debug Configurations #

In Eclipse, open the Java Project created with the ./gradlew eclipse command.

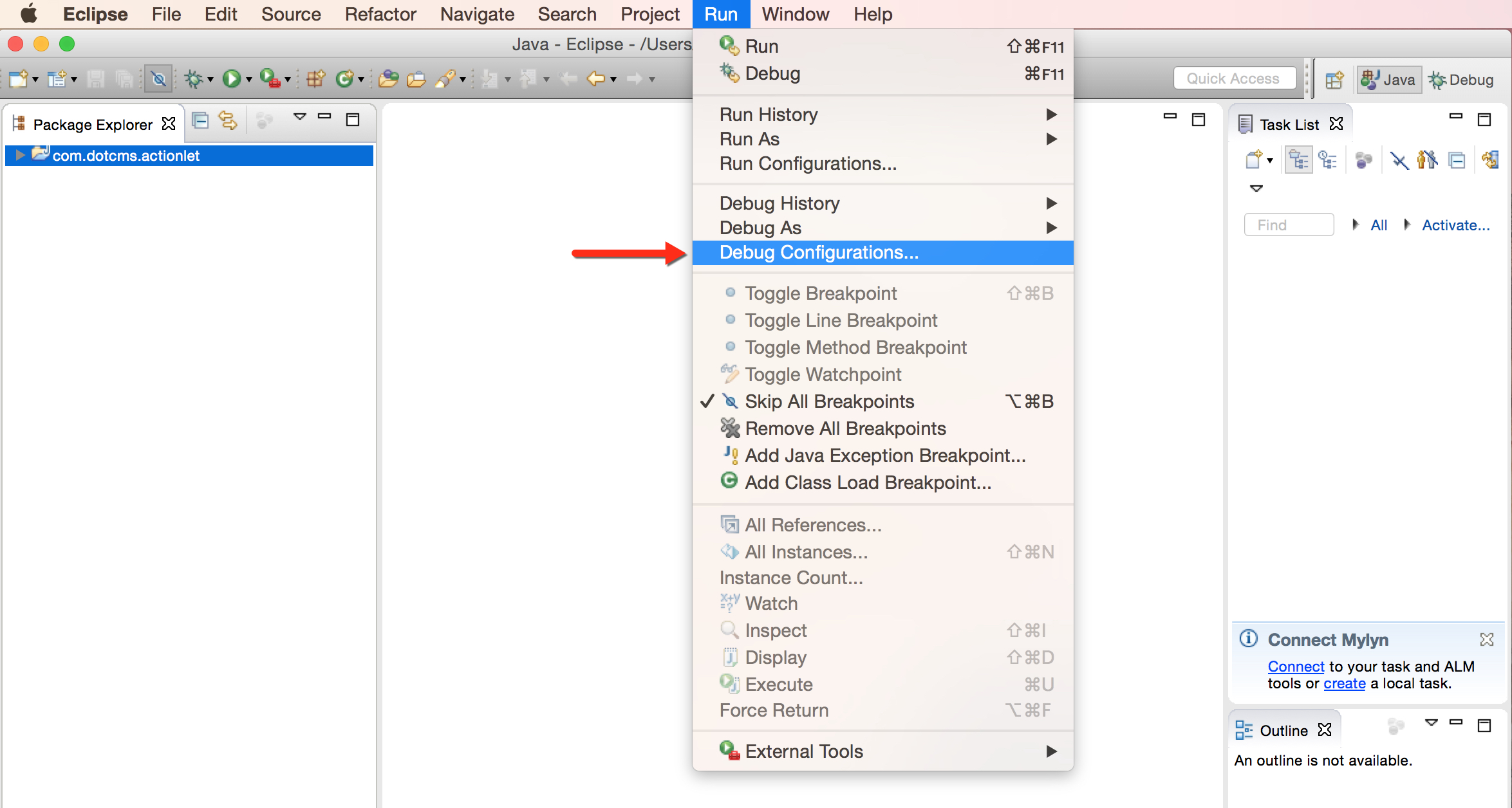

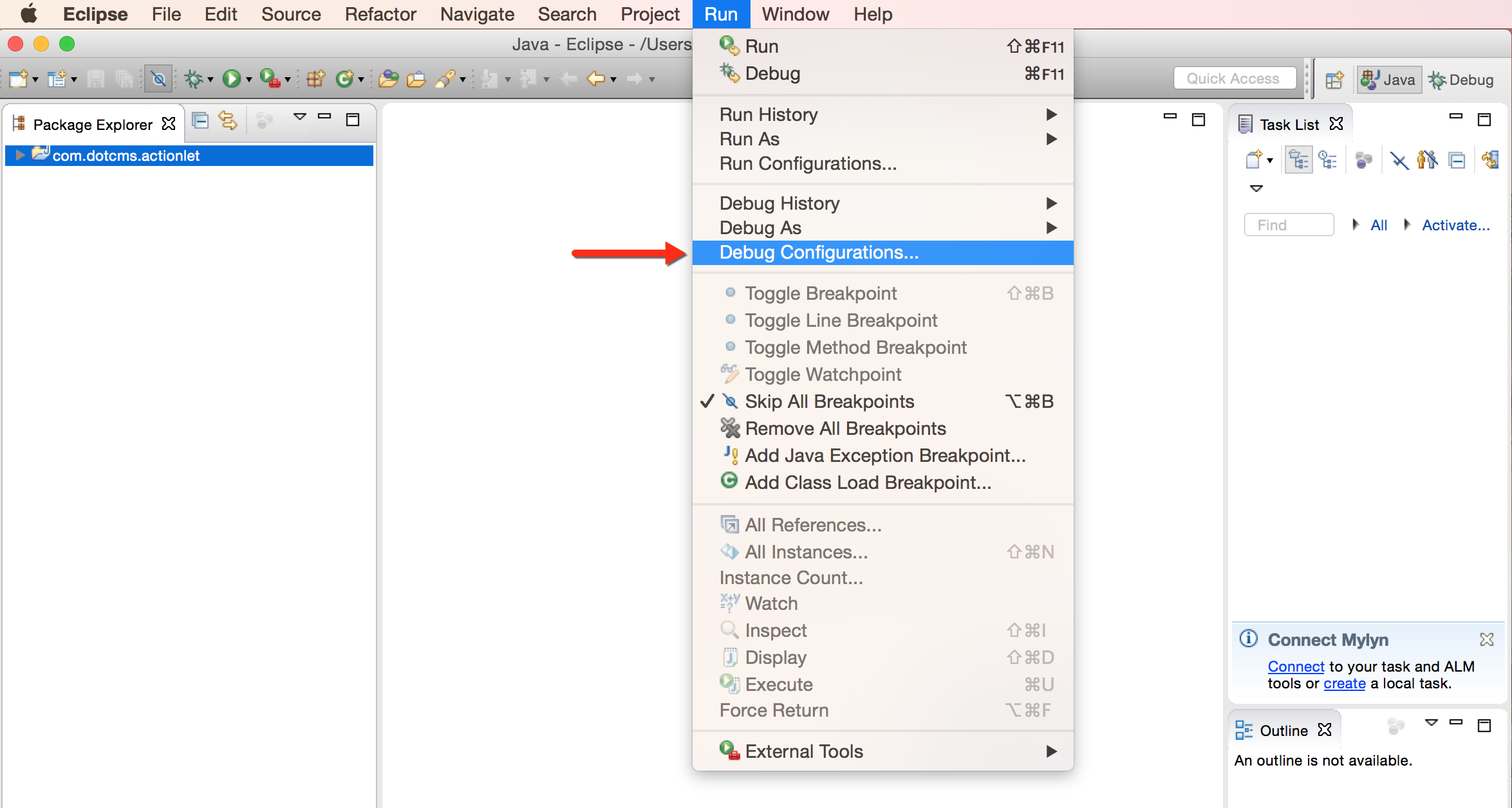

Select Run -> Debug Configurations.

Double-click on Remote Java Application

4. Edit the Debug Settings #

Name the Debug Configuration.
Make sure the Host and Port properties are set correctly.
Click the Apply button.
Click the Debug button.

5. Ensure the Debug threads are running #

Check the Debug perspective in Eclipse, and make sure you can see the threads running in the Java Virtual Machine.

Create your plugin #

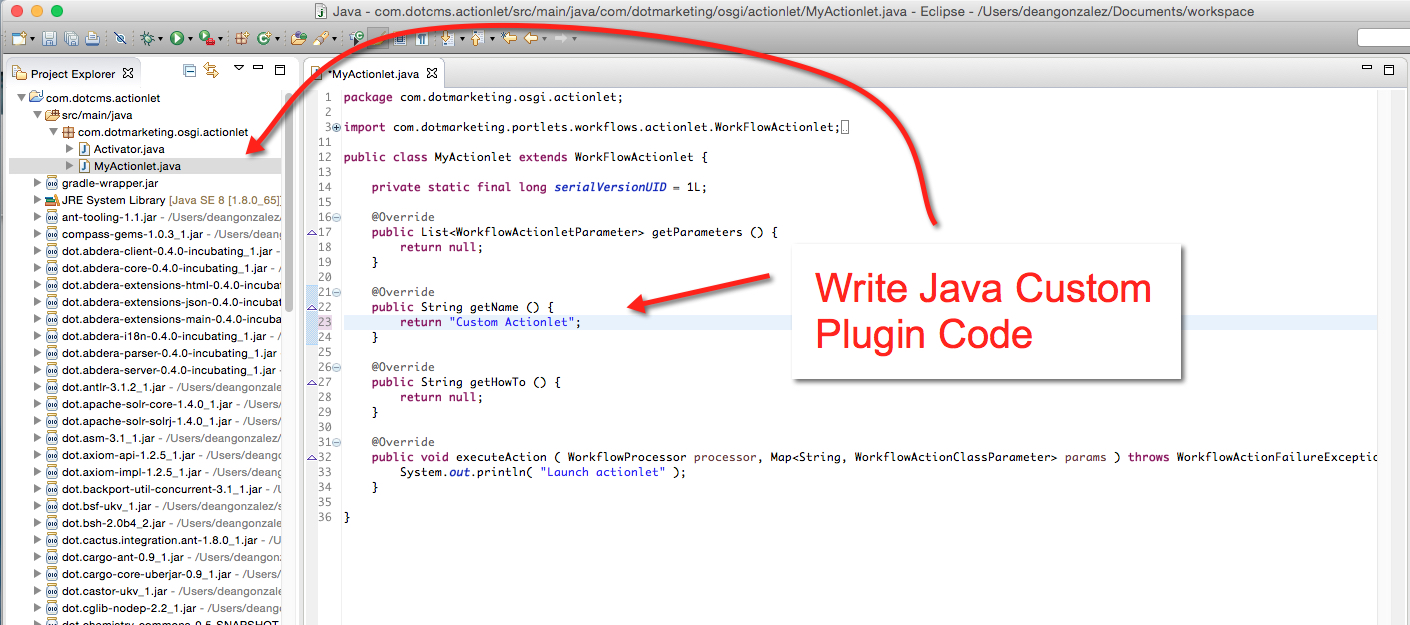

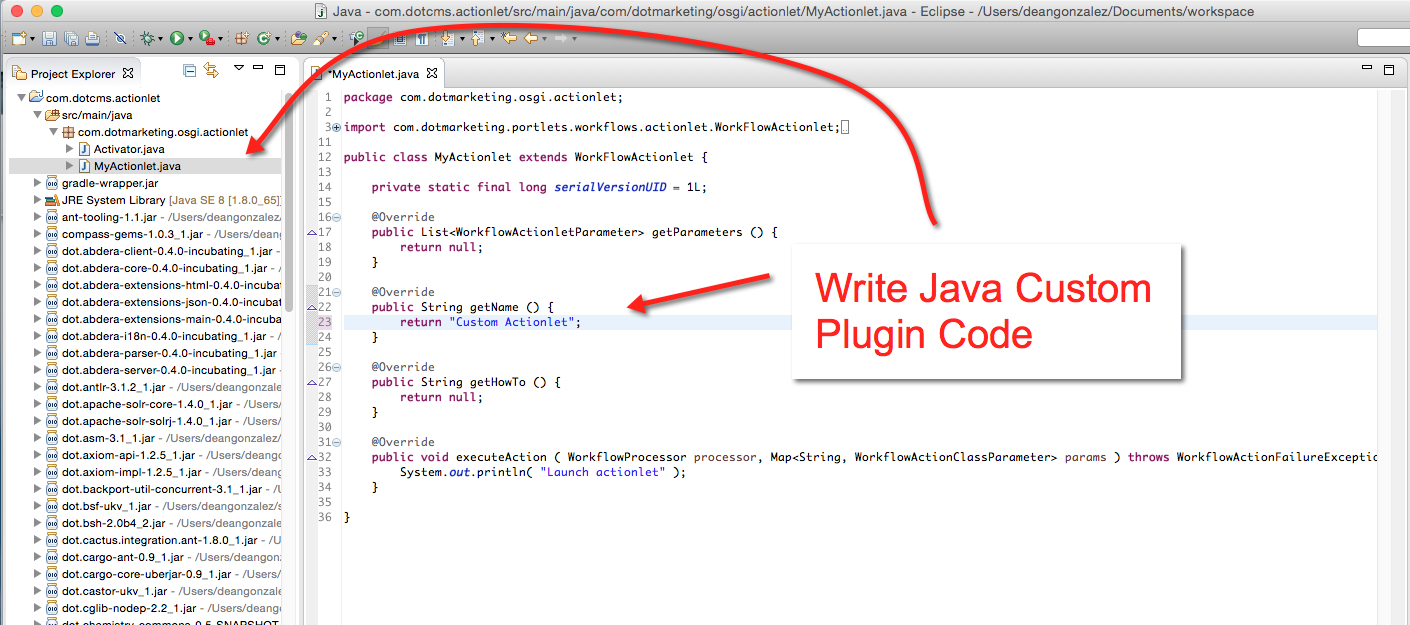

6. Add your custom Java code #

Open the Java files for your plugin in Eclipse.
Add your custom Java code to extend dotCMS functionality via your OSGi plugin.
Save your changes.

7. Package your plugin #

Open the command prompt.
Change to your OSGi plugin directory.
Run gradlew to create your JAR file ./gradlew jar
- Note: If you cannot run gradlew, you may need to change permissions on gradlew (e.g. chmod 777 gradlew) .

Open the Dynamic Plugins tool.

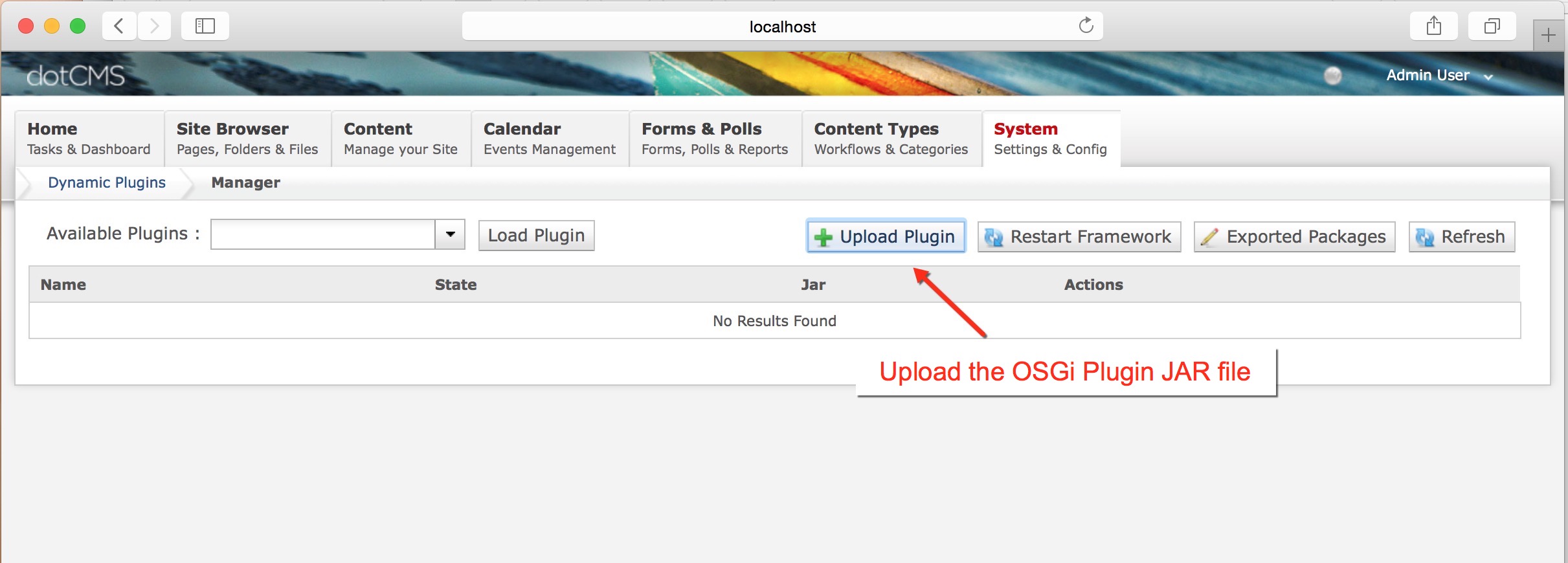

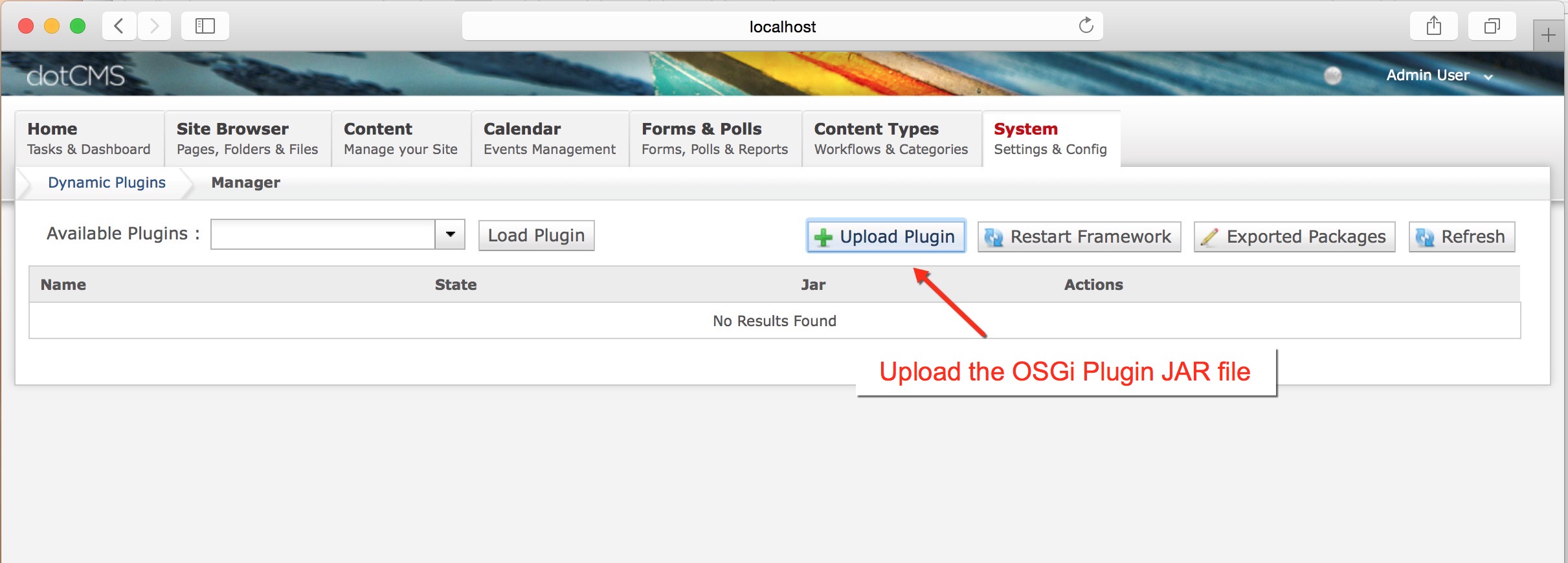

Click the Upload Plugin button.

Choose the newly created JAR file inside the build directory of your OSGi plugin.

10. Test your plugin #

Test the new functionality of your plugin to ensure that it works correctly. In the this example, the Name of the new Actionlet can be seen in the Workflow Actions list:

Uninstall Your Plugin #

To uninstall your plugin bundle:

Open the Dynamic Plugins portlet.
Find your plugin and click the Stop Action link to the right of the plugin JAR file name.
